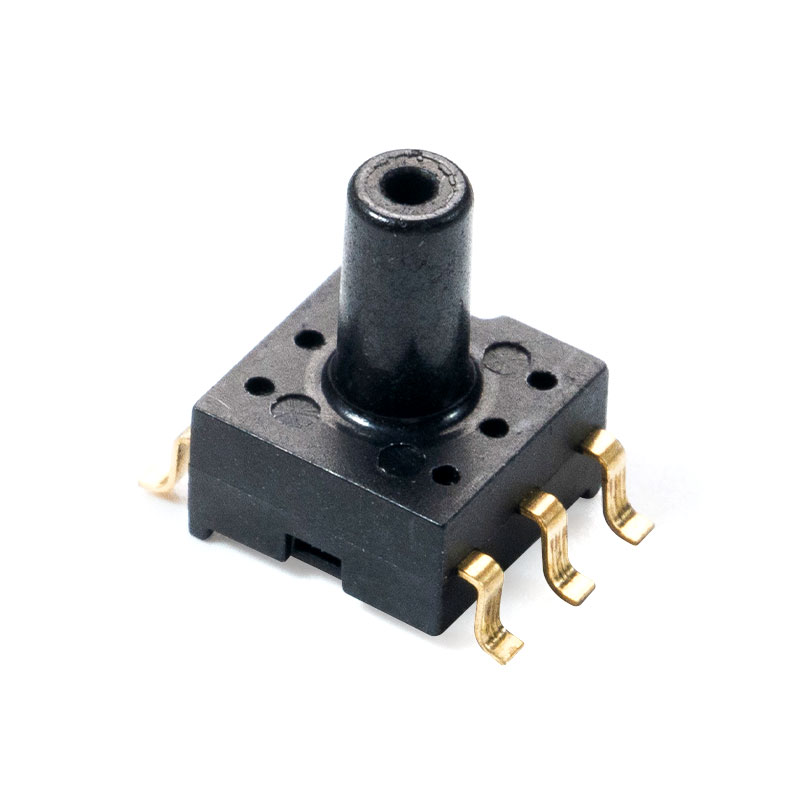

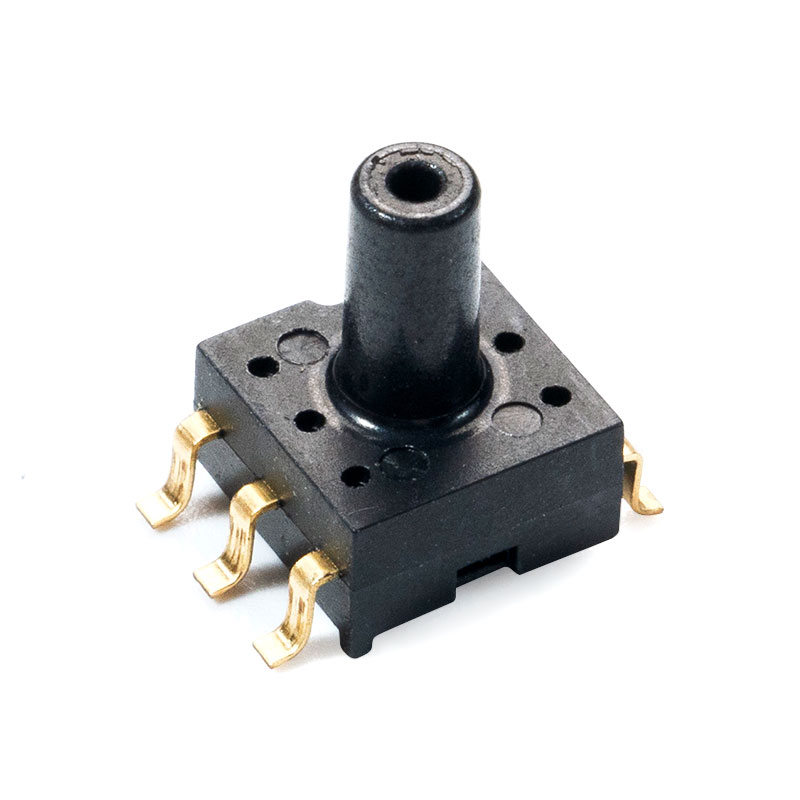

MCP-H10, MCP-H11 Pressura sensorem pro medical

General Description
Series MCP-H10 sarcina parva mediocri (SOP) cum colliculo est, quae insignem amplificationem, nonlinearitatem et temperaturam emendam pro pressione sensoriis piezoresistivae siliconis complectitur. Series pressionis sensoris MCP-H10 productum est quod utitur technologia provecta MEMS et specialiter destinatur ad electronicas consumendas et ad applicationes medicas. Pressio sensorem directo in tabulam PCB solidari potest, accuratam et altam amplitudinem analogiae intentionis output signum praebens quod pressioni applicatae proportionale est.

Features
Rhoncus mensuræ: -100kPa~1000kPa
Analogo absoluto output cum amplis linearibus (valoribus typicis 0.5V~4.5V) (nota: output intentionis nativus fieri potest)
Potentia copia voltage 5.0V (3.3V ad libitum)
Operans temperatus range -20 ad LXXXV
Repono temperatus range -40 ad 125

Typical Applications
Usus industrialis: pressionis virgas et components pneumatica
Usus medicinae: metri pressio sanguinis, generator oxygeni
Aquae planities detectio domus adjumenta: machinis abluendis, elutoria, cleaners vacuum
Pressura aeris control: munda mansiones et fumigans rooms
Alter: Aeris pressura medium pressura sentientes fabrica

Structura perficiendi
Pressura sensitivo chip: Pii
Filum plumbeum: filum aurum
Testa signare: PPS materiales
Pin: Cuprum inauratum
Net pondus: circiter 0.3 P.*

Product description
MCP-H11 Series est differentialis pressionis sensoris producti cum parva mole (SOP) cum uno portu tubo, interno amplificante integrato, et multi- pressioni et temperaturae compensationis scaenae. Nisl maxime accumsan in, et tortor nisl elit.
Summus effectus digitalis pressionis output (24-bit) et temperatus (24-bit) sensoriis designatus est obviam strictissimis postulatis OEM clientium.

Proprium
Mensuratio range: -100kPa~1000kPa
Lata linearis range I2C output
Lata potentia copiae intentione (3V-5.5V)
-20 ad 85
Repono temperatus range -40 ad 125

Typical applications
Usus industrialis: pressionis virgas et components pneumatica
Usus medicinae: monitor pressura sanguinis, concentrator oxygeni
Pressura aeris imperium: locus mundus et locus fumigans
Alter: Aeris pressura medium pressura sentientes fabrica
Net pondus: circiter 0.3 P.*

Typical applications
Usus industrialis: pressionis virgas et components pneumatica
Usus medicinae: monitor pressura sanguinis, concentrator oxygeni
Pressura aeris imperium: locus mundus et locus fumigans
Alter: Aeris pressura medium pressura sentientes fabrica
Net pondus: circiter 0.3 P.*

Contactus US
PREV：MCP-H20, MCP-H21 Pressura sensorem pro medicinis
DEINDE：Nullus proximus articulum

Specificationes electricae (MCP-H10)

Proprium Symbolum Min Typ Max Unitas
Voltage @ Vs=5.0V (MCP-H10-A series) V S 4.75 5 5.25 VDC
Voltage @ Vs=3.3V (MCP-H10-B series) V S 3 3.3 3.6 VDC
opus current Io - 3 mADC
Sagaciter (0 ad 85 ) - - - 1.5 %V FSS
ADC resolutio RES ADC - 24 - bit
DAC resolutio RES DAC - 12 - bit
Frequentia F sys 1 MHz
Responsum tempus t R - 2.5 - mS**
Satus Tempus - - 100 - mS**
ESD Praesidium - - 2 - KV


Packaging and Pin Definition(H11Datasheet)

describere NO. Pin Definition explicare
1 N/C Suspendisse in aere
1 6 2 SDA I 2 C Vide data bidirectional pin
2 5 3 SCL I 2 C Vide horologium initus pin
3 4 4 VDD potentia copia
5 GND causa
6 N/C Suspendisse in aere



Absoluta maximam rating (H11Datasheet)

Parameter signum minimum typicam maximum unitas notas
voltage VDD -0.3 5.8 V
Acus fodereitalis voltage Vio , dig -0.3 VDD 0.3 V 25°C
ONERO pressura Pproof 2X kPaG
ruptis pressura Pburst 3X kPaG
ESD praesidium HBM 4 kV
repono temperatus Tstg -40 125 °C


Commendatur harum operis (H11Datasheet)

Parameter signum minimum typicam maximum unitas notas
Potentia copia voltage 1 VDD 3.0 5 5.5 V
Operans Span Prange -100 1000 kPa Plures range optiones available
operatio temperatus Topr -20 85 °C
