Maximum Ratings（MCP-J10）
| Morbi laoreet | Symbolum | Range | Unitas |
| Analoga copia voltage | VDD | -0.3 ad 6.0 | V |
| operating temperatus | -40 ad 125 | ℃ | |
| Repono temperatus | -50 ad 150 | ℃ | |
| Coniunctio temperatus | 150 | ℃ | |
| ESD susceptibilitatem | HBM | 4 | kV |
Nota: Rating absolutus maximus potest facere detrimentum permanentem, et operationem diuturnam ad maximum supra absolutum aestimationem pertinere potest fidei fabricae..
Electrical Characteristic（MCP-J10）
Tabula 1. Characteres Operantes (VS = 5.0 Vdc, TA = 25°C, nisi aliter no*tetur)
| Morbi laoreet | Symbolumum | Min | Typ | Max | Unitasas |
| Supple intentione | VS | 4.75 | 5 | 5.25 | Vdc |
| Supple Current | I o | - | 3 | mAdc | |
| Offset (0°C ad 85°C) @ VS = 5.0Volts | V off | 0.44 | 0.5 | 0.56 | Vdc |
| Plena Scala Output (0°C ad 85°C) @ VS = 5.0V | V FSO | 4.44 | 4.5 | 4.56 | Vdc |
| Scala plena (0 ad 85 ) @ VS=5.0V | V FSS | 3.88 | 4 | 4.12 | Vdc |
Perge Tabula 1. Characteres Operantes (VS = 5.0 Vdc, TA = 25°C, nisi aliter notetur)
| Morbi laoreet | Symbolumum | Min | Typ | Max | Unitasas |
| Sagaciter (0°C ad 85°C) | - | - | - | 2.5 | %V FSS |
| Responsio Tempus | tR* | - | 2.5 | - | ms |
| Fermentum Tempus | - | - | 100 | - | ms |
| Offset stabilitas | - | - | 0.25 | - | %V FSS |

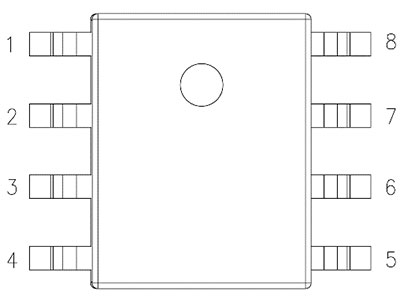

1. Packaging and Pin Definition（MCP-J11
| Describe | NO. | Pin Definition | Describe | |
 | 1 | N/C | vacans | |
| 2 | EGREDIOR | output " | Suspensus est in aere | |
| 3 | N/C | Vacante | ||
| 4 | GND | grounding | ||
| 5 | VDD | potentia copia | ||
| 6 | N/C | vacans | ||
| 7 | SCL | Vide horologium linea | ||
| 8 | SDA | SDA |
Table 1.1 Pin Definitio Relatio
Nota:
1.J10：7 & 8 # paxillos suspendi debet in aere
2.J11：2 # paxillus suspensus in aere
2. Technical Specifications
2. Technical Specifications
| modulnos | signumum | minimum valorem | Typical values | Maximum valorem | unitasas | notas |
| potentia in reset | VDDPOR | 2.8 | V | |||
| opus current | Iavdd | 2 | 3 | ma | modus operandi | |
| 200 | nA | Standby current | ||||
| ADC resolutio | RESRAW | 24 | Bits | |||
| Pressura accurate 1,2 . output | ACC | 1% | %FS | 0°C ~ 60°C | ||
| 1.5% | %FS | -20°C ~ 70°C | ||||
| Virtus in tempore | TUP | 100 | ms | vocabulary | ||
| EEPROM data retentione | Tlive | 10 | annos | @125℃ |
1. Accuracitas includit nonlinearitatem, temperaturam hysteresim, et pressuram hysteresis;
2. Plena vitae accuratio in 1000 horis HTOL, LTOL, HTSL, THB, PCT probatio est;
2.2.I 2 C. Electrical characteres
| Parameter | signumum | minimum valorem | Maximum valorem | unitasas | notas |
| horologium frequency | fBsclB | 1 | MHz | R = 1K | |
| Horologium humilis pulsus sustentationem tempore | tBLOWB | 0.52 | us | ||
| Horologium altum pulsus sustentationem tempore | tBHIGHB | 0.24 | us | ||
| SDA constitutionis tempus | tBSUDATB | 0.1 | us | ||
| SDA tenens tempus | tBHDDATB | 0.0 | us | ||
| Tempus constituendi in principio cuiusque sessionis | tBSUSTAB | 0.24 | us | ||
| Satus condicionem sustentationem tempore | tBHDSTAB | 0.24 | us | ||
| Subsisto tempore, Constitue tempus | tBSUSTOB | 0.24 | us | ||
| Intervallum temporis inter duas communicationes | tBBUFB | 0.52 | us |
