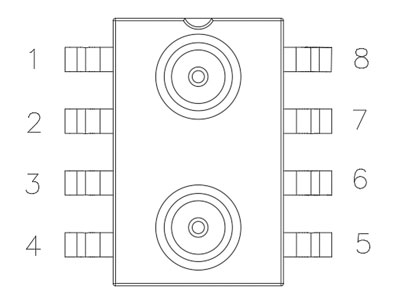

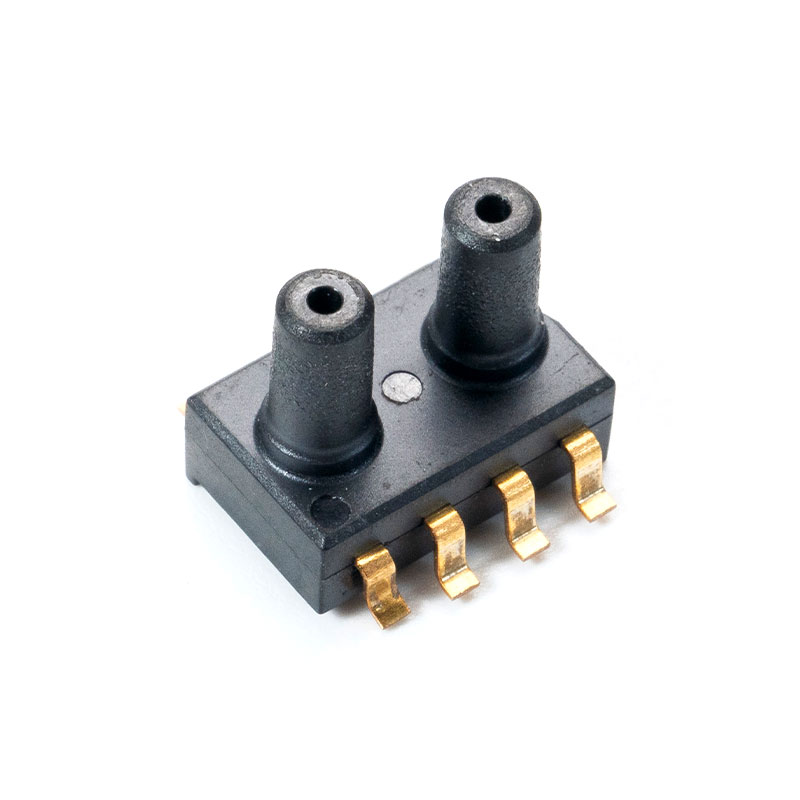

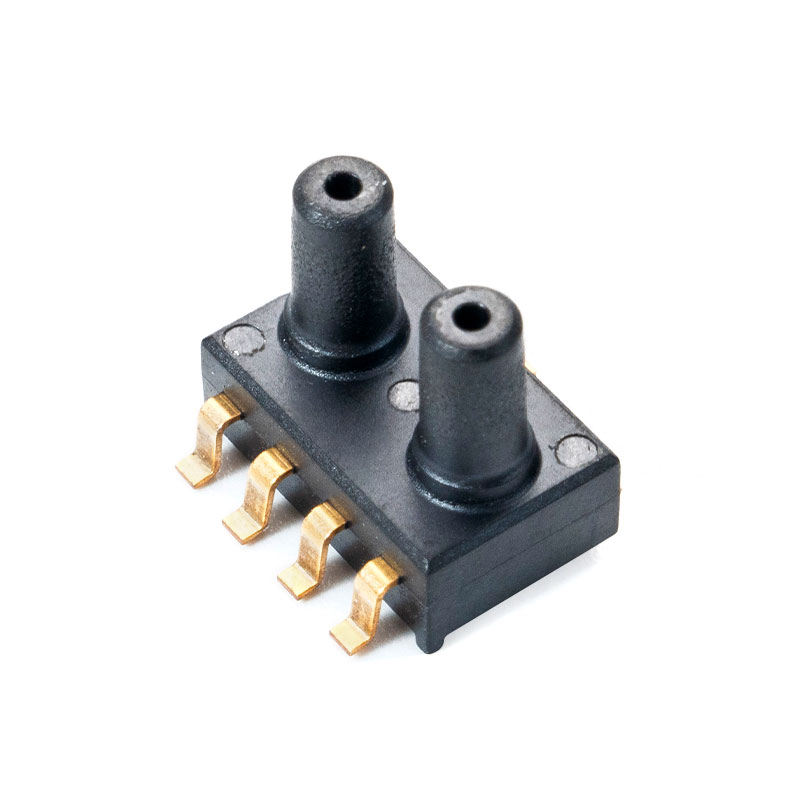

Pin configurationis (MCP-H20)
| Descriptiones |  | NO. | Symbolum | Definition |
| P1 P2 | 1 | N/C | Circuitus vel extra terram non coniungere | |
| 2 | VDD | Potestas Supple | ||
| 3 | EGREDIOR | Output voltage | ||
| 4 | N/C | Circuitus vel extra terram non coniungere | ||
| 5 | N/C | Circuitus vel extra terram non coniungere | ||
| 6 | N/C | Circuitus vel extra terram non coniungere | ||
| 7 | N/C | Circuitus vel extra terram non coniungere | ||
| 8 | GND | Terram |
Specificatio*nes technicae (MCP-H20)
Electrical parametri
| Proprium | Symbolumumum | Min | Typ | Max | Unitasasas |
| Vs=5.0V (MCP-H20-A series) | V S | 4.75 | 5 | 5.25 | VDC |
| Vs=3.3V (MCP-H20-B series) | V S | 3 | 3.3 | 3.6 | VDC |
| opus current | I o | - | 3 | mADC | |
| Accuracy（0℃ ad 85℃） | - | - | - | 1.5 | %V FSS |
| ADC resolutio | RES ADC | - | 24 | - | bit |
| DAC resolutio | RES DAC | - | 12 | - | bit |
| Responsum tempus | t R | - | 2.5 | - | ms |
| Fermentum tempus | - | - | 100 | - | ms |
| ESD Praesidium | - | - | 2 | - | kV |
Output parametri
MCP-H20-A series (Power Supple Voltage: 5.0V)
| Proprium | Symbolumumum | Min | Typ | Max | Unitasasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.44 | 0.5 | 0.56 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 4.44 | 4.5 | 4.56 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 3.88 | 4 | 4.12 | VDC |
series MCP-H20-B (Power Supple Voltage: 3.3V)
| Proprium | Symbolumumum | Min | Typ | Max | Unitasasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.055 | 0.1 | 0.145 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 3.055 | 3.1 | 3.145 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 2.91 | 3 | 3.09 | VDC |
Pressura et Temperature Characteres (MCP-H21)
Table1: Impetus Output Characteres @ VDD = 5.0V, T = 25 nisi aliter notetur
| Parameter | Symbolumum | Conditiones | Min | Typ. | Max | Unitasas |
| Pressura mensurae Range1 | PFS | -100 | 200 | Kpa | ||
| Pressura resolutio | Pressura | 0.05 | %FS | |||
| Pressura Accuracy2 | Ad 25℃ | -0.1 | 0.1 | %FS | ||
| Totalis error Band3 | TEB | Ab 25℃ ad 60℃ | -0.3 | 0.3 | %FS | |
| Ab -40℃ ad 85℃ | -1 | 1 | %FS | |||
| Long Term Drift | Post periodum I annos | ±0.15 | %FS | |||
| Reflow solidatorium impulsum | IPC/JEDEC J-STD-020C | ±0.2 | %FS |
1. Princeps pressura latus est in latere notatum.
2. Maxima declinatio ab aptissima recta (BFSL) ad output aptata supra pressionis range 25C mensuratur. Omnes errores ob pressionem non linearitatem, hysteresim et non iterabilitatem includit.
3. Total pressio errorum cohortis includit omnes errores accurationis, errores scelerisque in recompensatione temperatus range et spatia et tolerantias calibrationis cinguli. Pro idealium sensorem output respectu input pressionis et caliditatis, TEB valores tantum valent ad copiam intentionis calibratae.
Table2: Temperature Output Characteres @ VDD = 5.0V, T = 25°C nisi aliter note
| Parameter | Symbolumum | Conditiones | Min | Typ. | Max | Unitasas |
| Operatio Temperature | T OP* | -20 | 85 | ℃ | ||
| Temperature Absoluta Accuracy | -10℃ ad 50℃ | ±1.0 | ℃ | |||
| Max Error in Power | Potentia copia ab 1.8V ad 5.5V | ±0.1 | ℃ | |||
| Temperature Resolutione de Output Data | 0.01 | ℃ |
Characteres electrici (MCP-H21)
Table3: DC Characteres @VDD=5.0 V, T=25, nisi aliter note
| Parameter | Symbolum | Conditiones | Min | Typ. | Max | Unitas |
| Operatio mediocris Current | I DDAVP | Una Conversio per Second | 4.5 | 6.4 | μA | |
| Apicem Current | I POCUM | Pressura conversionem | 1.5 | ma | ||
| Temperatus conversionem | 0.95 | ma | ||||
| Standby Supple Current | I DDSTB | Ad 25℃ | 0.2 | μA | ||
| Vide Data Pro Frequency | f* SCLK | I 2 C protocol, viverra-sursum resistor 4.7k | 100 | 400 | kHz | |
| Digital Input High intentione | VIH | 0.8 | V | |||
| Digital Input Low Voltage | VII | 0.2 | V | |||
| Digital Output High intentione | V OH | IO = 0.5 mA | 0.9 | V | ||
| Digital Output Low intentione | V OL' | IO = 0.5 mA | 0.1 | V | ||
| Input Capacitance | C IN' | 10 | pF* | |||
| I2C excute-Up Resistors | R PU | 3.3 | 4.7 | 10 | KΩ |
Absoluta Maximum Rating (MCP-H21)
Tabula 4: Absoluta Maximum Rating
| Parameter | Symbolum | Conditiones | Min | Max | Unitas |
| Overpressure | P MAX | 3X | |||
| Supple intentione | V DD | -0.3 | 6.5 | V | |
| Interface Voltage | V SI* | -0.3 | VDD 0.3 | V | |
| Repono Temperature Range | T STG | -40 | 150 | ℃ | |
| Maximum Solding Temperature | T MS | X secundo maximum | 250 | ℃ | |
| ESD Rating | Humanum corpus exemplar | -2 | 2 | kV |
Patefacio ad maximum rating condiciones prostrata afficiat fabrica constantiam.
