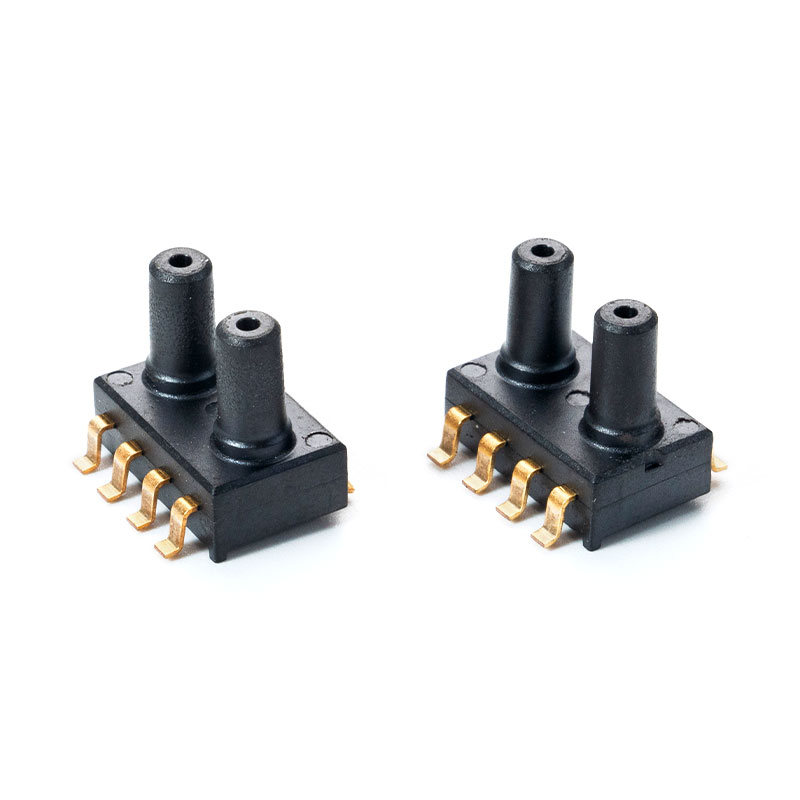

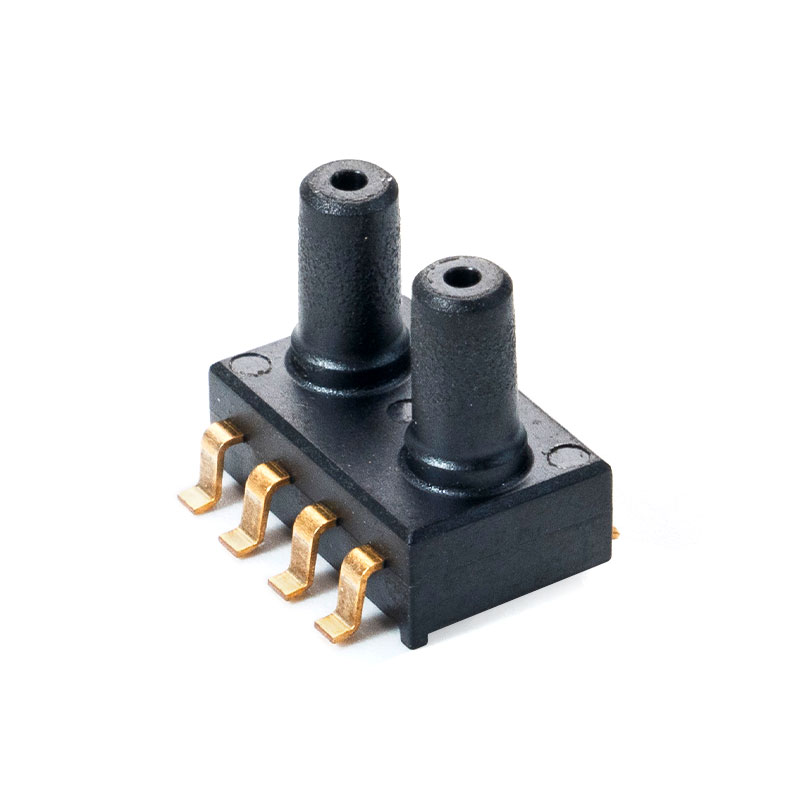

Parametri electrica (MCP-H20"
| Pro*prium | Symbolum | Min | Typ | Max | Unitas |
| Vs=5.0V (MCP-H20-A series) | V S | 4.75 | 5 | 5.25 | VDC |
| Vs=3.3V (MCP-H20-B series) | V S | 3 | 3.3 | 3.6 | VDC |
| opus current | I o | - | 3 | ma DC | |
| Accuracy（0℃ ad 85℃） | - | - | - | 1.5 | %V FSS |
| ADC resolutio | RES ADC | - | 24 | - | bit |
| DAC resolutio | RES DAC | - | 12 | - | bit |
| Responsum tempus | t R | - | 2.5 | - | ms |
| Fermentum tempus | - | - | 100 | - | ms |
| ESD Praesidium | - | - | 2 | - | kV |
Parametri output（MCP-H20）
MCP-H20-A series (Power Supple Voltage: 5.0V)
| Proprium | Symbolumum | Min | Typ | Max | Unitasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.44 | 0.5 | 0.56 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 4.44 | 4.5 | 4.56 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 3.88 | 4 | 4.12 | VDC |
series MCP-H20-B (Power Supple Voltage: 3.3V)
| Proprium | Symbolumum | Min | Typ | Max | Unitasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.055 | 0.1 | 0.145 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 3.055 | 3.1 | 3.145 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 2.91 | 3 | 3.09 | VDC |
Pressura et Temperatura Characteres MCP-H21）
Table1: Impetus Output Characteres @ VDD = 5.0V, T = 25 nisi aliter notetur
| Parameter | Symbolumum | Conditiones | Min | Typ. | Max | Unitasas |
| Pressura mensurae dolor 1 | PFS | -100 | 200 | Kpa | ||
| Pressura resolutio | Pressura | 0.05 | %FS | |||
| Pressura Accuracy 2 | Ad 25℃ | -0.1 | 0.1 | %FS | ||
| Summa Error Band 3 | TEB | Ab 25℃ ad 60℃ | -0.3 | 0.3 | %FS | |
| Ab -40℃ ad 85℃ | -1 | 1 | %FS | |||
| Long Term Drift | Post periodum I annos | ±0.15 | %FS | |||
| Reflow solidatorium impulsum | IPC/JEDEC J-STD-020C | ±0.2 | %FS |
1. Alta pressio latus est in latere notato.
2. Maxima declinatio ab aptissima recta (BFSL) ad output mensurata supra pressionis range in 25 °C aptata. Omnes errores propter pressionem non linearitatem, hysteresim et non iterabilitatem includit.
3. Tota pressio errorum cohortis includit omnes errores accurationis, errores scelerisque in recompensatione temperatus range, et spatia et calibratiis cinguli tolerantias. Pro idealium sensorem output respectu input pressionis et caliditatis, TEB valores tantum valent ad copiam intentionis calibratae.
Table2: Temperature Output Characteres @ VDD = 5.0V, T = 25°C nisi aliter note
| Parameter | Symbolumum | Conditiones | Min | Typ. | Max | Unitasas |
| Operatio Temperature | T OP* | -20 | 85 | ℃ | ||
| Temperature Absoluta Accuracy | -10℃ ad 50℃ | ±1.0 | ℃ | |||
| Max Error in Power | Potentia copia ab 1.8V ad 5.5V | ±0.1 | ℃ | |||
| Temperature Resolutione de Output Data | 0.01 | ℃ |
Characteres electrici
Table3: DC Characteres @VDD=5.0 V, T=25, nisi aliter note
| Parameter | Symbolum | Conditiones | Min | Typ. | Max | Unitas |
| Operatio mediocris Current | I DDAVP | Una Conversio per Second | 4.5 | 6.4 | μA | |
| Apicem Current | I POCUM | Pressura conversionem | 1.5 | ma | ||
| Temperatus conversionem | 0.95 | ma | ||||
| Standby Supple Current | I DDSTB | Ad 25℃ | 0.2 | μA | ||
| Vide Data Pro Frequency | f* SCLK | I 2 C protocol, viverra-sursum resistor 4.7k | 100 | 400 | kHz | |
| Digital Input High intentione | VIH | 0.8 | V | |||
| Digital Input Low Voltage | VII | 0.2 | V | |||
| Digital Output High intentione | V OH | IO = 0.5 mA | 0.9 | V | ||
| Digital Output Low intentione | V OL' | IO = 0.5 mA | 0.1 | V | ||
| Input Capacitance | C IN' | 10 | pF* | |||
| I 2 C. excute-Up Resistors | R PU | 3.3 | 4.7 | 10 | KΩ |
