Wholesale MCP-H10, MCP-H11 Minimum pressionem sensorem
Home / Productum / Per mensurationem dolor / Humilis pressura sensorem / MCP-H10, MCP-H11 Minimum pressionem sensorem
CATEGORIES
MCP-H10, MCP-H11 Minimum pressionem sensorem
  • MCP-H10, MCP-H11 Minimum pressionem sensorem
  • MCP-H10, MCP-H11 Minimum pressionem sensorem
  • MCP-H10, MCP-H11 Minimum pressionem sensorem

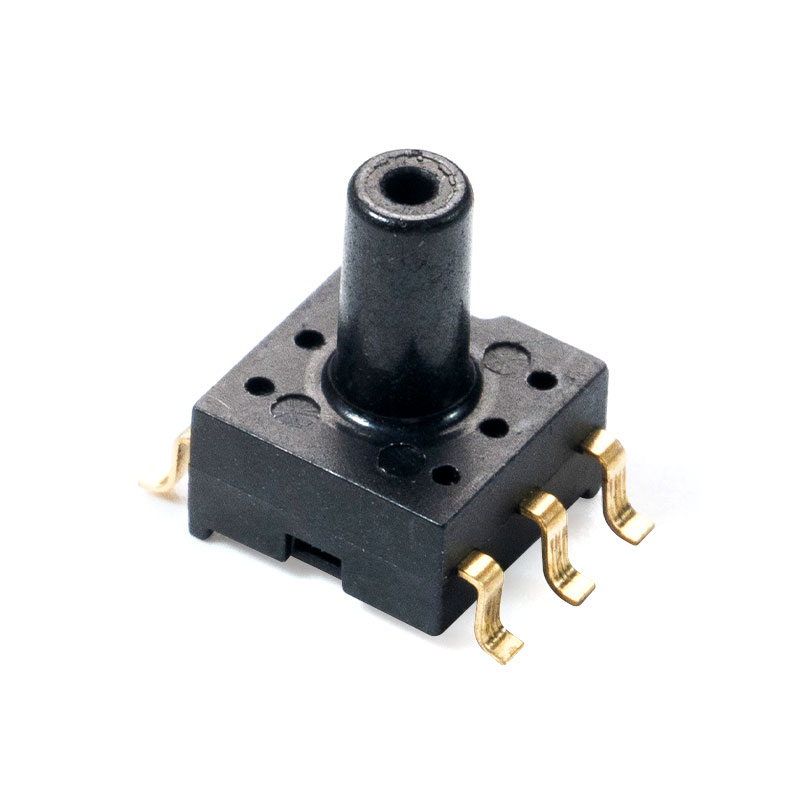

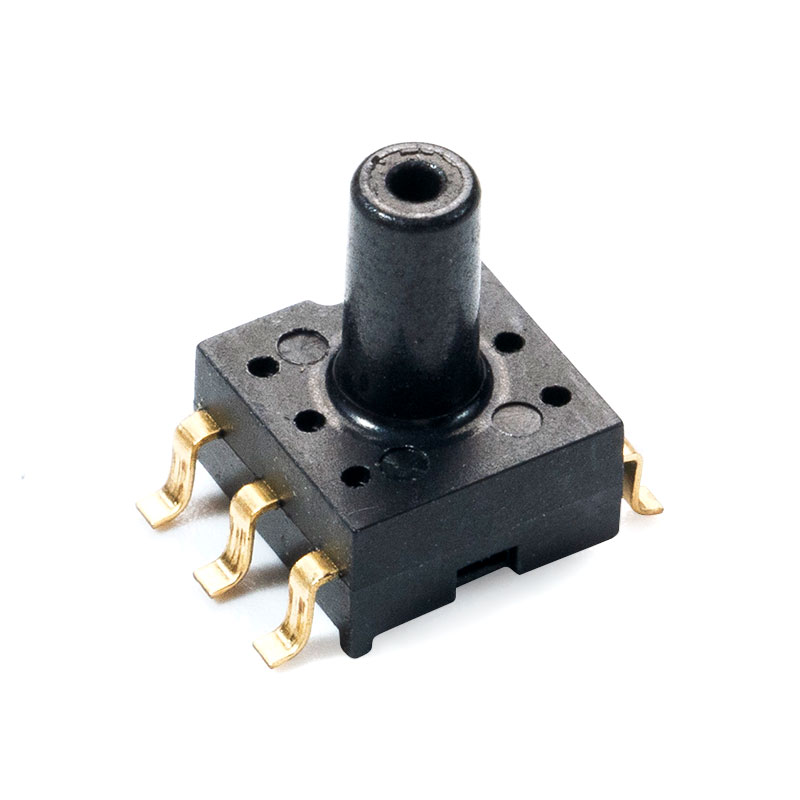

MCP-H10, MCP-H11 Minimum pressionem sensorem

General Description(MCP-H10)

Series MCP-H10 sarcina parva mediocri (SOP) cum colliculo est, quae insignem amplificationem, nonlinearitatem et temperaturam emendam pro pressione sensoriis piezoresistivae siliconis complectitur. Series pressionis sensoris MCP-H10 productum est quod utitur technologia provecta MEMS et specialiter destinatur ad electronicas consumendas et ad applicationes medicas. Pressio sensorem directo in tabulam PCB solidari potest, accuratam et altam amplitudinem analogiae intentionis output signum praebens quod pressioni applicatae proportionale est.

Features

Rhoncus mensuræ: -100kPa~1000kPa
Analogo absoluto output cum amplis linearibus (valoribus typicis 0.5V~4.5V) (nota: output intentionis nativus fieri potest)
Potentia copia voltage 5.0V (3.3V ad libitum)
Operans temperatus range -20 ad LXXXV
Repono temperatus range -40 ad 125

Typical Applications

Usus industrialis: pressionis virgas et components pneumatica
Usus medicinae: metri pressio sanguinis, generator oxygeni
Aquae planities detectio domus adjumenta: machinis abluendis, elutoria, cleaners vacuum
Pressura aeris control: munda mansiones et fumigans rooms
Alter: Aeris pressura medium pressura sentientes fabrica

Structura perficiendi

Pressura-sensitivo chip: Pii
Filum plumbeum: filum aurum
Testa signare: PPS materiales
Pin: Cuprum inauratum
Rete pondus: circiter 0.3 P.*

Product description(MCP-H11)
MCP-H11 Series pressionis sensoris differentialis productum est cum parvae molis sarcinae (SOP) cum portu uno tubi, amplificatoris integrati interni, et multi- pressionis scaenae ac temperaturae compensatio. Nisl maxime accumsan et nisl elit consectetuer.
Summus effectus digitalis pressionis output (24-bit) et temperatus (24-bit) sensoriis designatus est obviam strictissimis postulatis OEM clientium.

Proprium
Mensuratio range: -100kPa~1000kPa
Lata linearis range I2C output
Lata potentia copiae intentione (3V-5.5V)
-20 ad 85
Repono temperatus range -40 ad 125

Typical applications
Usus industrialis: pressionis virgas et components pneumatica
Usus medicinae: monitor pressura sanguinis, concentrator oxygeni
Pressura aeris imperium: locus mundus et locus fumigans
Alter: Aeris pressura medium pressura sentientes fabrica
Rete pondus: circiter 0.3 P.*

Effectus structuralis
Pressura sensitivo chip: materia Silicon
Duc: Aurum filum
Encapsulation testudo: PPS material
Pin: Argentum

Contactus US
PREV：MCP-H20, MCP-H21 Maximum pressionem sensorem
DEINDE：Nullus proximus articulum

Specificationes electricae (MCP-H10)

Proprium Symbolum Min Typ Max Unitas
Voltage @ Vs=5.0V (MCP-H10-A series) V S 4.75 5 5.25 VDC
Voltage @ Vs=3.3V (MCP-H10-B series) V S 3 3.3 3.6 VDC
opus current Io - 3 mADC
Sagaciter (0 ad 85 ) - - - 1.5 %V FSS
ADC resolutio RES ADC - 24 - bit
DAC resolutio RES DAC - 12 - bit
Frequentia Fsys 1 MHz
Responsum tempus t R - 2.5 - mS**
Satus Tempus - - 100 - mS**
ESD Praesidium - - 2 - KV

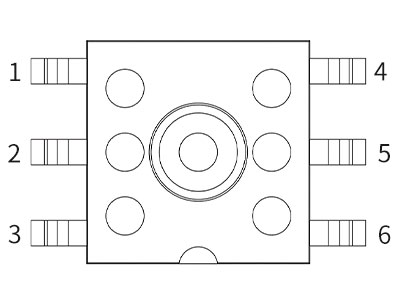

Packaging and Pin Definition(MCP-H11)

Describe NO. Pin Definition Explicare
1 N/C Suspendisse in aere
2 SDA I 2 C Vide data bidirectional pin
3 SCL I 2 C Vide horologium initus pin
4 VDD potentia copia
5 GND causa
6 N/C Suspendisse in aere



Absoluta maximam rating (MCP-H11)

Parameter signum minimum typicam maximum unitas notas
voltage VDD -0.3 5.8 V
Acus digitalis voltage Vio, dig -0.3 VDD 0.3 V 25°C
ONERO pressura Pproof 2X kPaG
ruptis pressura Pburst 3X kPaG
ESD praesidium HBM 4 kV
repono temperatus Tstg -40 125 °C


Commendatur harum opus (MCP-H11)

Parameter signum minimum typicam maximum unitas notas
Potentia copia voltage 1 VDD 3 5 5.5 V
Operans Span Prange -100 1000 kPa Plures range optiones available
operatio temperatus Topr -20 85 °C
