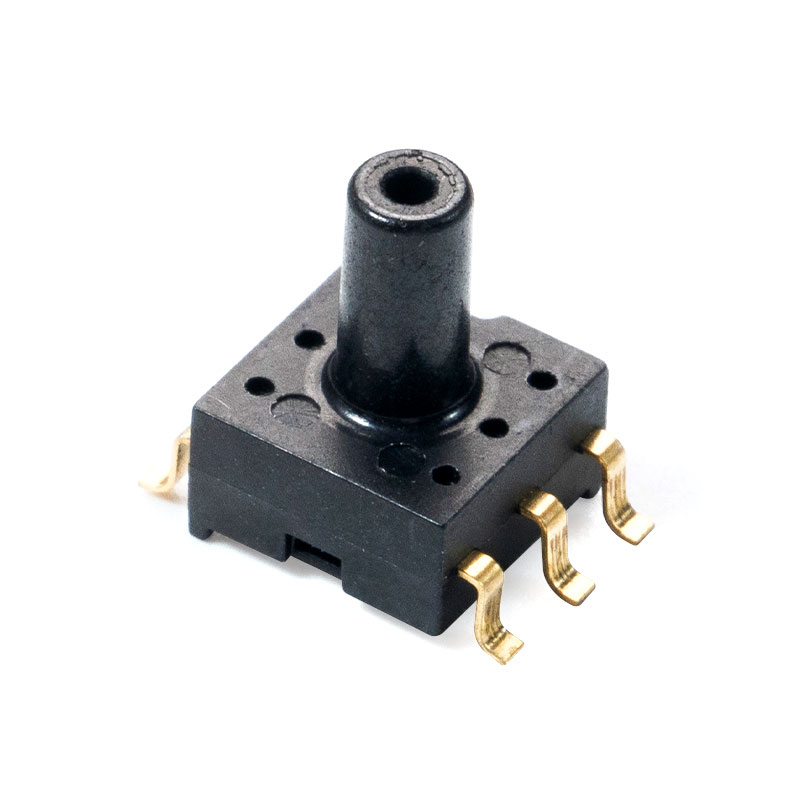

Specificationes electricae (MCP-H10)
| Proprium | Symbolum | Min | Typ | Max | Unitas |
| Voltage @ Vs=5.0V (MCP-H10-A series) | V S | 4.75 | 5 | 5.25 | VDC |
| Voltage @ Vs=3.3V (MCP-H10-B series) | V S | 3 | 3.3 | 3.6 | VDC |
| opus current | Io | - | 3 | mADC | |
| Sagaciter (0 ad 85 ) | - | - | - | 1.5 | %V FSS |
| ADC resolutio | RES ADC | - | 24 | - | bit |
| DAC resolutio | RES DAC | - | 12 | - | bit |
| Frequentia | Fsys | 1 | MHz | ||
| Responsum tempus | t R | - | 2.5 | - | mS** |
| Satus Tempus | - | - | 100 | - | mS** |
| ESD Praesidium | - | - | 2 | - | KV |

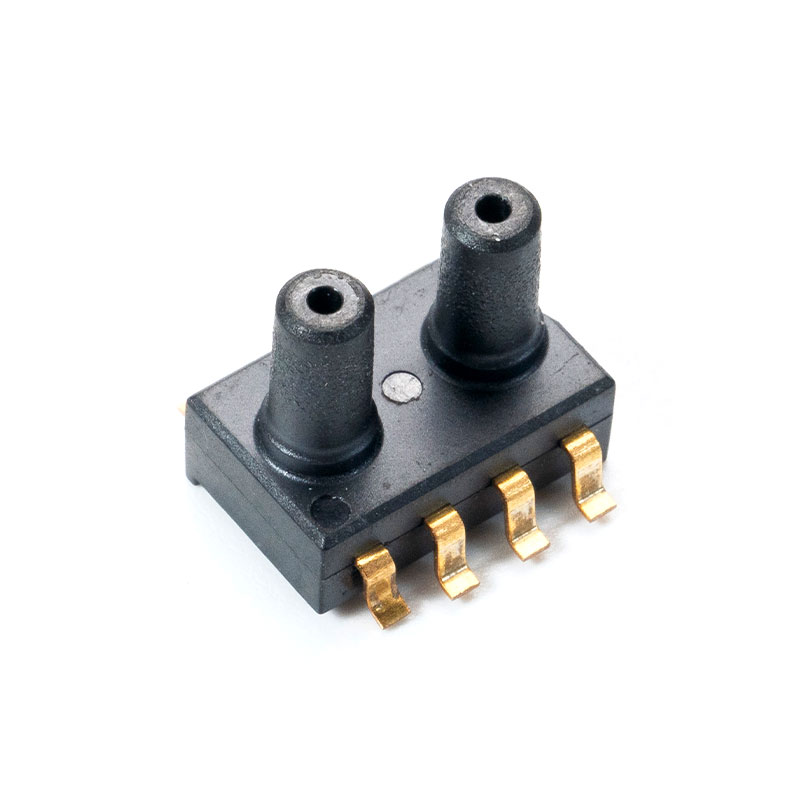

Parametri electrica (MCP-H20)
| Pro*prium | Symbolum | Min | Typ | Max | Unitas |
| Vs=5.0V (MCP-H20-A series) | V S | 4.75 | 5 | 5.25 | VDC |
| Vs=3.3V (MCP-H20-B series) | V S | 3 | 3.3 | 3.6 | VDC |
| opus current | I o | - | 3 | mADC | |
| Accuracy（0℃ ad 85℃） | - | - | - | 1.5 | %V FSS |
| ADC resolutio | RES ADC | - | 24 | - | bit |
| DAC resolutio | RES DAC | - | 12 | - | bit |
| Responsum tempus | t R | - | 2.5 | - | ms |
| Fermentum tempus | - | - | 100 | - | ms |
| ESD Praesidium | - | - | 2 | - | kV |

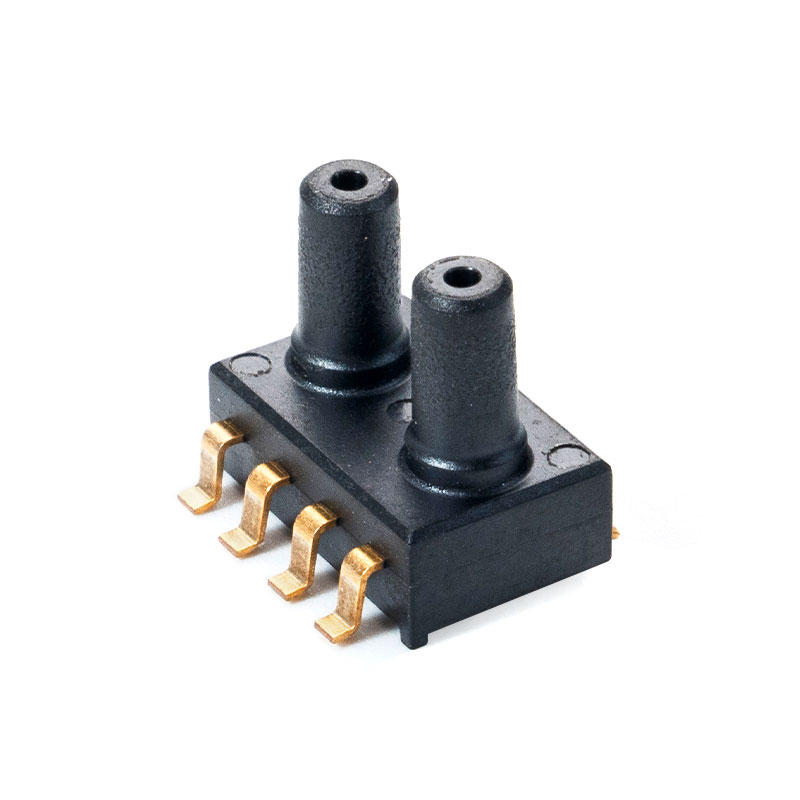

Parametri output (MCP-H20)
MCP-H20-A series (Power Supple Voltage: 5.0V)
| Proprium | Symbolumum | Min | Typ | Max | Unitasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.44 | 0.5 | 0.56 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 4.44 | 4.5 | 4.56 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 3.88 | 4 | 4.12 | VDC |
series MCP-H20-B (Power Supple Voltage: 3.3V)
| Proprium | Symbolumum | Min | Typ | Max | Unitasas |
| Min pressura offset (0℃ ad 85℃) | V off | 0.055 | 0.1 | 0.145 | VDC |
| Plena eu output (0℃ ad 85℃) | V FSO | 3.055 | 3.1 | 3.145 | VDC |
| Plena spatio (0℃ ad 85℃) | V FSS | 2.91 | 3 | 3.09 | VDC |

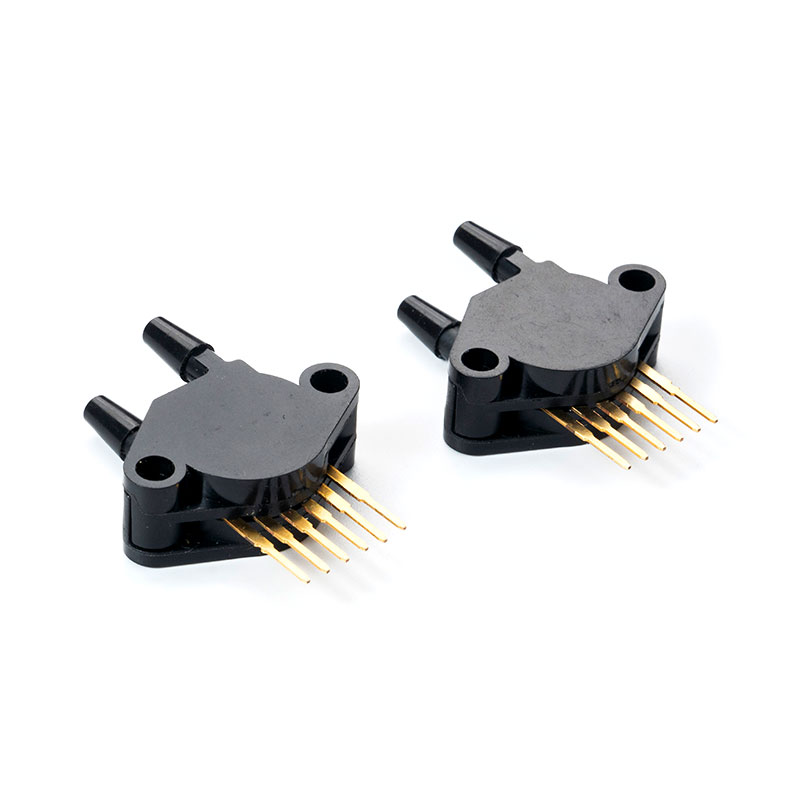

1. Specificationes generales (MCP5XXXDP)
Mensam 1. Low parametri
| Proprium | Symbolum | Min | Typ | Max | Unitas |
| Min pressura offset (0℃ ad 85℃) | Voff | 0.055 | 0.1 | 0.145 | VDC |
| Plena eu output (0℃ ad 85℃) | VFSO | 3.055 | 3.1 | 3.145 | VDC |
| Plena spatio (0℃ ad 85℃) | VFSS | 2.91 | 3 | 3.09 | VDC |
Mensam 2. genus pressurae
| Genus pressura | descriptio |
| Absoluta | Output proportionalis est differentiae pressionis applicatae et in vacuo constructo respectu |
| Gauge pressura | Output proportionalis est differentiae pressionis applicatae et pressionis atmosphaerici |
| Differentia pressura | Output proportionalis est differentiae inter pressiones applicatas ad unumquemque portum (portum 1 - portum 2) |
2. Analog output technica parametri (MCP5XXXDP)
Tabula 3. Analog output specifications
(VS = 5.0 Vdc, TA = 25°C, nisi aliud notetur).
| Proprium | Symbolum | Min | Typ | Max | Unitas |
| Pressura range (1) | P O**P* | 0 | - | 100 | kPa |
| 15 | - | 115 | |||
| Supple voltage (2) | V S | 4.75 | 5 | 5.25 | VDC |
| Supple current | I O | - | 7 | 10 | mAdc |
| Minimum pressura offset (3) , (0 ad 85 °C) @ VS = 5.0 V | V OFF | 0.088 | 0.2 | 0.313 | VDC |
| Plena eu output (4) , differentiale et absolutum (0 ad 85°C) @ VS = 5.0 V | V FSO | 4.587 | 4.7 | 4.813 | VDC |
| Plena span (5) , differentiale et absolutum (0 ad 85°C) @ VS = 5.0 V | V FSS | - | 4.5 | - | VDC |
| Sagaciter (6) | - | - | - | ±2.5 | %V FSS |
| Sensibilitas | V/P | - | 45 | - | mV/kPa |
| Responsum tempus (7) | t R | - | 1 | - | ms |
| Output fons vena ad plena eu output | I O | - | 0.1 | - | mAdc |
| Fermentum tempus (8) | - | - | 20 | - | ms |
| Offset stabilitas (9) | - | - | ±0.5 | - | %V FSS |
1. 1.0 kPa (kiloPascal) valet 0.145 psi.
2. Fabrica est ratiometrica intra hanc extensionem specificatam.
3. Offset (VOFF) definitur output voltage ad pressionem minimam aestimatam.
4. Plena-scala output (VFSO) definitur output voltage ad maximum vel pressione plenae aestimatum.
5. Spatium amplissimum (VFSS) definitur differentia algebraica inter output voltage in pressione plena aestimata et in intentione pressionis minimae aestimatae.
6. Accuracy (error budget) ex his constat;
Linearity: Output deviatio a linea recta cum pressione super determinatis pressionis range.
Temperature hysteresis: Output declinatio ad quamlibet temperiem intra range operativam temperatura, postquam temperatura revolvitur ad minimum vel maximum punctis operating temperatura, cum nulla pressione differentiali applicata.
Pressura hysteresis: Output deviatio ad quamlibet pressionem intra certum range, cum haec pressio revolvitur et a minima vel maxima pressione aestimata ad 25 °C.
TcSpan: Output declinatio super temperatus range ex 0 ad 85 °C, ad 25 °C.
TcOffset: Output digredior cum pressura minima applicata super temperaturas range of 0 ad 85 °C, respectu 25 °C.
Variatio a nominalibus: Variatio a valoribus nominalibus, pro palmi offset vel amplitudine, ut cento VFSS ad 25 °C.
7. Responsum tempus definitur esse tempus incrementi mutati in output ut ab 10% ad 90% suae finalis valoris, cum determinato gradu mutationis in pressura subiecta.
8. Fermentum tempus definitur tempus requisitum productum obviam praefinito output voltage, postquam pressio confirmata est.
9. cinguli stabilitas est producti deviationis output cum 1000 horis pressionis pulsae subiectae, cyclus temperatus cum praeiudicio test..
