MCP-H20 Impetus sensorem industriae

DESCRIPTIO

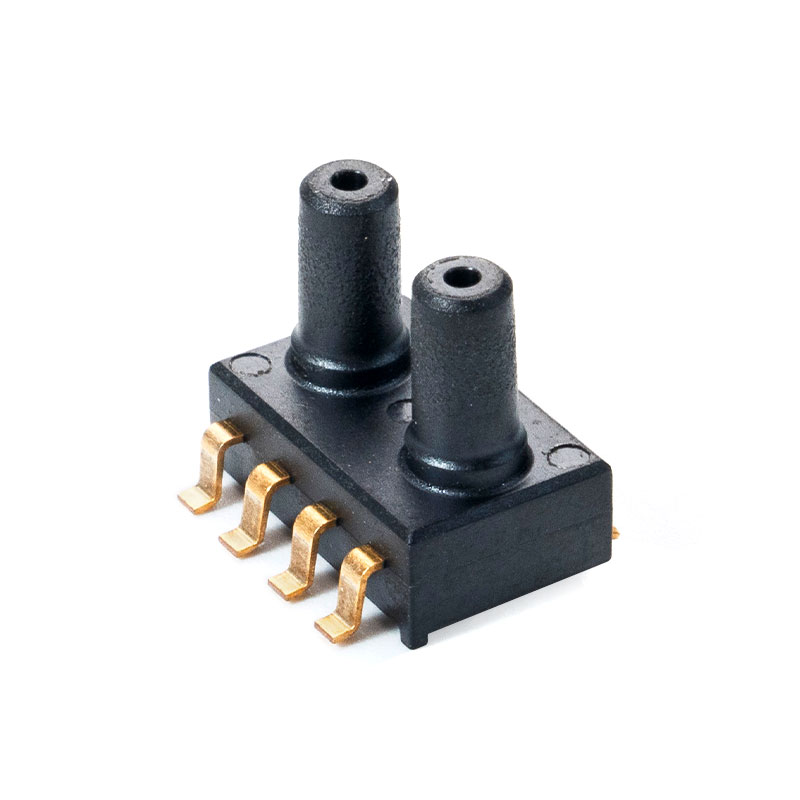

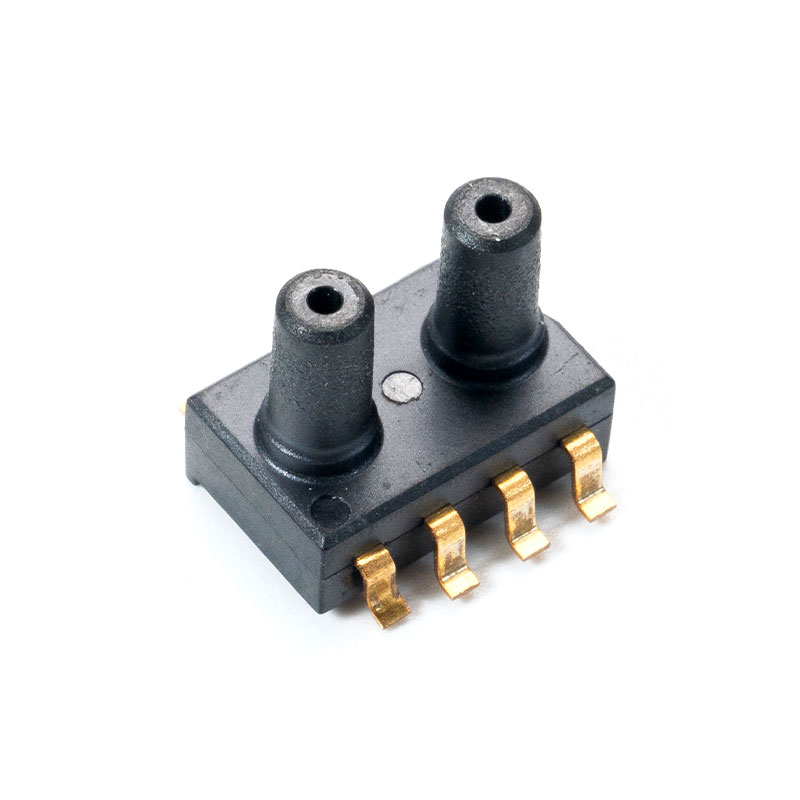

Series MCP-H20 parva est sarcina adumbrata (SOP) cum pressione duali portuum, incorporatio pressionis piezoresistivae siliconis sensoris quae signum amplificationis, nonlinearitatis et temperaturae mercedis integrat. Usus provectae MEMS technologiae, series pressus sensoris MCP-H20 ad electronicarum medicamentorumque applicationum consumere formandam est. Potest directe superficialis conscendit et in tabulam PCB solidari potest, cum accurata et alta amplitudine analogi voltage output signum praebet, quod applicatae pressioni directe proportionale est.

Features

Potentia copia voltage: 5.0V (3.3V ad libitum)
Pressura range: -100kPa ad 0, 200kPa
Opus vena: <3mA
Analog voltage output
Operatio temperatus: -20 ad 85℃
Repono temperatus range -40 ad 125

Typical Applications

Clausus Filter Deprehensio
Altitudo et Airspeed mensurae
Instrumenta medica
Ignis Suppressio Ratio
Panel Meter
Aeris motus / Environmental Imperium
Imperium pneumaticum

Structura perficiendi

Pressura-sensitivo chip: Pii
Filum plumbeum: filum aurum
Testa signare: PPS materiales
Pin: Cuprum inauratum
Net pondus: circiter 0.3 P.

Contactus US
PREV：MCP-H21 Impetus sensorem industriae
DEINDE：MCP5700DP Pressura sensorem industriae

Electrical parametri

Pro*prium Symbolum Min Typ Max Unitas
Vs=5.0V (MCP-H20-A series) V S 4.75 5.0 5.25 VDC
Vs=3.3V (MCP-H20-B series) V S 3 3.3 3.6 VDC
opus current I o - 3 ma DC
Accuracy（0℃ ad 85℃） - - - 1.5 %V FSS
ADC resolutio RES ADC - 24 - bit
DAC resolutio RES DAC - 12 - bit
Responsum tempus t R - 2.5 - ms
Fermentum tempus - - 100 - ms
ESD Praesidium - - 2 - kV


Output parametri

MCP-H20-A series (Power Supple Voltage: 5.0V)

Proprium Symbolumum Min Typ Max Unitasas
Min pressura offset (0℃ ad 85℃) V off 0.44 0.5 0.56 VDC
Plena eu output (0℃ ad 85℃) V FSO 4.44 4.5 4.56 VDC
Plena spatio (0℃ ad 85℃) V FSS 3.88 4 4.12 VDC

series MCP-H20-B (Power Supple Voltage: 3.3V)

Proprium Symbolumum Min Typ Max Unitasas
Min pressura offset (0℃ ad 85℃) V off 0.055 0.1 0.145 VDC
Plena eu output (0℃ ad 85℃) V FSO 3.055 3.1 3.145 VDC
Plena spatio (0℃ ad 85℃) V FSS 2.91 3 3.09 VDC
